Infrared detection cards can convert invisible light into visible light. This application aims to achieve the detection, recognition, and calibration of invisible light. Infrared detection card can also be referred to as infrared detection card, infrared laser detection card, laser observation card, and laser beam visualization instrument. The detection wavelength range of the infrared detection card is 750nm-2130nm, and the active area is 56x35mm.

Damage threshold reference: 2000nm laser, input diameter 5mm, power 7W, detecting bubbles in the card.

Highlight Optics has released a new wideband infrared detection card, which can meet the wavelength requirements of most users. The wideband infrared detection card breaks the narrow band limitation of the original domestic infrared detection card and expands the wavelength from the original 1590nm to 2130nm. The most crucial point is that this new infrared detection card can replace a series of domestic infrared laser detection cards and imported laser vision cards, such as N-1-AC N-1-AG、N-1-BG、N-3-AM， The IR1/IR2/IR3 series of Phts from Russia, as well as the VRC2, VRC5, and VRC4 infrared probe cards from Sorebo. This also indicates that the new wideband infrared laser detection card can replace most laser vision cards on the market. Visualize the radiation of different commercial lasers (laser wavelengths such as 808nm, 850nm, 980nm, 1064nm, 1340nm, 1470nm, 1550nm, etc.) over a wide spectral range.

Advantages of Infrared detection card

- Easy to operate.

- Large sensitive areas.

- Wide detection wavelength range.

- Low price and high cost-effectiveness.

- Durable and sturdy, with good moisture resistance.

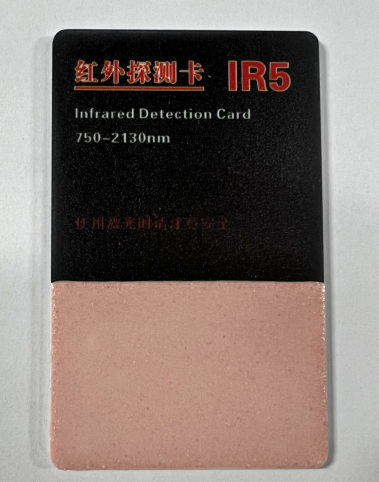

Infrared detection card

Parameters of infrared laser detection card

Large purchases can enjoy discounts the unit price for 2 items is lower. If you have any questions, please feel free to contact us at any time.
