The three Laser Safety Spectacle of T3R, T4 and T5 are all 1064nm, but they have different wavelength range. They have efficient optical density, which can provide good protection performance. They pass CE certification and the quality can be guaranteed.
The application type：
Product model：T3RS2, T3RS4, T3RS5, T3RS6, T4S1, T4S2, T4S4, T4S5, T4S6, T5S1, T5S2, T5S3, T5S4, T5S5, T5S6
OD4+, OD6+, 1064nm Laser Safety Goggles
Although T3R, T4 and T5 are very similar laser safety goggles, there are slightly different. T3R wavelength range is less than T4 and T5 and optical density is also less than T4 and T5 at 1064 nm. T4 wavelength range is 190-450nm，800-1700nm and T5 wavelength range is 190-420nm，850-1300nm. The three laser safety glasses VLT range is 28%-35%.
Main characters of the 1064nm Laser Safety Eyewear:
-Sport Laser Safety Eyewear.
-The laser safety glasses are lightweight, designed to be comfortable for long-wear.
-Optical Density (O.D): >4; Visible Light Transmittance (VLT) : >28%
-Made of durable material, compact design and easy to carry.
-With wear resistant lenses, resistant to scratch.
-Certification: CE Certified; Standard Used: EN 207:2009+ AC: 2011.
Main Parameters of T3R Laser Safety Spectacle
-Protection Wavelengths Range: 660nm & 850-1100nm
-Optical Density (O.D): >2
-Frame Color: Black
-Lens Color: Cyan
-Visible Light Transmittance (VLT): >30%
-Certification: CE Certified
-Protection Features: All-round Absorption
-This laser safety glasses is made of PC and laser absorbing materials
-We Marked 660nm, 850-1100nm, OD4+, CE on the Lens

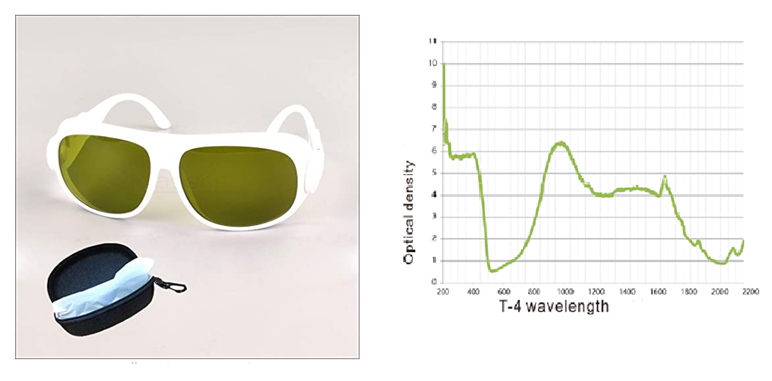

Main Parameters of T4 Laser Safety Spectacle
-Protection Wavelengths Range: 190-450nm & 800-1700nm
-Optical Density (O.D): >4
-Frame Color: White
-Lens Color: Green
-Visible Light Transmittance (VLT): >35%
-Certification: CE Certified
-Protection Features: All-round Absorption
-This laser safety glasses is made of PC and laser absorbing materials
-We Marked 190-450 & 800-1700nm OD4+ CE on the Lens
Main Parameters of T5 Laser Safety Spectacle
-Protection Wavelengths Range: 190-420nm & 850-1300nm
-Optical Density (O.D): >4
-Frame Color: Black
-Lens Color: Dark Green
-Visible Light Transmittance (VLT): >28%
-Certification: CE Certified
-Protection Features: All-round Absorption
-This laser safety glasses is made of PC and laser absorbing materials
-We Marked 190-420nm & 850-1300nm OD4+ CE on the Lens
Laser Safety Spectacle(1064nm)
|
Model |
Wave Band |
Optical Density |
Visible Light Transmittance |
Certification |
Coating color |
Style |
|
T3RS2 |
660nm, 850-1100nm |
OD2+,OD4+ |
30% |
CE |
Green |
S2 |
|
T3RS4 |
660nm, 850-1100nm |
OD2+,OD4+ |
30% |
CE |
Green |
S4 |
|
T3RS5 |
660nm, 850-1100nm |
OD2+,OD4+ |
30% |
CE |
Green |
S5 |
|
T3RS6 |
660nm , 850-1100nm |
OD2+,OD4+ |
30% |
CE |
Green |
S6 |
|
T4S1 |
190-450nm，800-1700nm |
OD4+ OD6+ |
35% |
CE |
Cyan |
S1 |
|
T4S2 |
190-450nm，800-1700nm |
OD4+ OD6+ |
35% |
CE |
Dark green |
S2 |
|
T4S5 |
190-450nm，800-1700nm |
OD4+ OD6+ |
35% |
CE |
Dark green |
S5 |
|
T4S6 |
190-450nm，800-1700nm |
OD4+ OD6+ |
35% |
CE |
Dark green |
S6 |
|
T5S1 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S1 |
|
T5S2 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S2 |
|
T5S3 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S3 |
|
T5S4 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S4 |
|
T5S5 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S5 |
|
T5S6 |
190-420nm，850-1300nm |
OD4+ OD6+ |
28% |
CE |
Dark green |
S6 |
