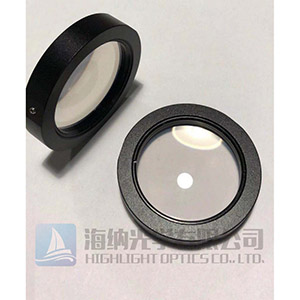

Tydex太赫兹透镜（THz Lens）的材质选择多种多样，其中TPX和HRFZ-Si材料是Tydex最常用的，其标准品型号和库存是最多的。太赫兹TPX透镜的直径尺寸最大可达100mm，而太赫兹硅透镜的直径可达150mm，他们的通光孔径都≥90%，镀有增透膜且具有高品质的特点。其外形分为平凸、双凸、球形半球形、次半球形等，也可根据客户需求定制。Tydex也提供替他材质的太赫兹透镜，如BK7，Ge，Si，ZnSe，CaF2等等。
所属品牌： 俄罗斯Tydex
应用类型： 太赫兹
产品型号：LSH-HRFZ-SI-D2、LHS-HRFZ-SI-D6-T3.3
负责人：包程鑫
联系电话：13417596712
电子邮箱：cxbao@welloptics.cn
Tydex公司的太赫兹透镜主要分为TPX和HRFZ-Si两种材质，其库存和标准品是最多的，是太赫兹透镜最常选用的材料。除此之外，Tydex也提供包括BK7，BaF2，IR-FS，UV-FS，UV-FS2，Ge，Si，ZnSe，CaF2，Sapphire，Crystal quartz，KBr， ZnS等材料的THz透镜。
太赫兹TPX透镜一般分为平凸和双凸2种外形，表面镀有增透膜，最大直径可达100mm，通光孔径≥90%，标准型号的有效焦距在25-200mm之间。
太赫兹硅透镜则主要分为球形、半球形、次半球形和子弹形，表面镀有增透膜，直径可达2-150mm，通光孔径≥90%，有效焦距也在25-200mm之间。
1. TPX透镜
主要参数:
|
材料 |
TPX |
|
形状 |
平凸, 双凸 |
|
最大直径, mm |
to 100 |
|
直径公差, mm |
± 0.25 |
|
通光口径, % |
≥90 |
|
有效焦距公差, % |
± 1 |
|
表面质量 (两面抛光), scr/dig |
80/50 |
|
表明精度, mm |
± 0.01 和理想球面和平面的差 |
以下规格的TPX透镜有库存:
|
No. |
直径 |
有效焦距 |
|
|
mm |
inches |
mm |
|
|
1 |
25.4 |
1 |
25 |
|
2 |
25.4 |
1 |
50 |
|
3 |
25.4 |
1 |
100 |
|
4 |
25.4 |
1 |
200 |
|
5 |
38.1 |
1.5 |
50 |
|
6 |
38.1 |
1.5 |
75 |
|
7 |
38.1 |
1.5 |
100 |
|
8 |
38.1 |
1.5 |
150 |
|
9 |
38.1 |
1.5 |
200 |
|
10 |
50.8 |
2 |
50 |
|
11 |
50.8 |
2 |
75 |
|
12 |
50.8 |
2 |
100 |
|
13 |
50.8 |
2 |
150 |
|
14 |
50.8 |
2 |
200 |
*所有有效焦距都是针对300µm波长而计算的。在THz波段(30-3000µm)边界和可见光下，折射率色散产生有效焦距公差和生产产生的有效焦距公差相比是可以忽略不计的。
2. HRFZ-Si 透镜
我们提供衍射型HRFZ-Si 透镜: hyper-/hypo-/hemispherical, bullet, and meniscus.
参数:
|
材料 |
HRFZ-Si |
|
外型 |
球形，超半球形 |
|
半球形 |
|
|
次半球形和子弹型 |
|
|
直径, mm |
2-150mm |
|
直径公差, mm |
±0.1 |
|
通光口径, % |
≥90 |
|
表面质量, scr/dig |
80/50 |
|
表面精度, mm |
±0.01和理想球面和平面的差 |
|
膜层 |
高透膜 |
抛光的球型HRFZ-Si(直径2.0, 4.0, 6.0, 8.0, 10.0, 和12.0 mm)是有库存的。根据定制需求，超/低/半球型也可以在2个星期内提供，平板可以抛光到定制的厚度。
我们也提供HRFZ-Si半月透镜。
主要参数:
|
材料 |
HRFZ-Si |
|
外型 |
平行平板 |
|
最大直径, mm |
150 |
|
直径加工公差,mm |
0 |
|
厚度公差, mm |
+/0.1 |
|
通光口径, % |
≥90 |
|
平行度, arc. min |
3 |
|
表面质量, scr/dig |
60/40 |
|
表面精细度, mm |
±0.01和理想平板的差异 |
|
膜层 |
高透膜层 |
以下的HRFZ-Si meniscus 透镜有库存:
|
No. |
直径 |
有效焦距 mm |
|
|
mm |
inches |
||
|
1 |
25.4 |
1 |
25 |
|
2 |
25.4 |
1 |
50 |
|
3 |
25.4 |
1 |
100 |
|
4 |
25.4 |
1 |
200 |
|
5 |
38.1 |
1.5 |
50 |
|
6 |
38.1 |
1.5 |
75 |
|
7 |
38.1 |
1.5 |
100 |
|
8 |
38.1 |
1.5 |
150 |
|
9 |
38.1 |
1.5 |
200 |
|
10 |
50.8 |
2 |
25 |
|
11 |
50.8 |
2 |
50 |
|
12 |
50.8 |
2 |
75 |
|
13 |
50.8 |
2 |
100 |
|
14 |
50.8 |
2 |
150 |
|
15 |
50.8 |
2 |
200 |
*所有有效焦距都是针对300µm波长而计算的。在THz波段(30-3000 µm)边界和可见光下，折射率色散产生有效焦距公差和生产产生的有效焦距公差相比是可以忽略不计的
Tydex HRFZ-Si透镜的标准规格
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
sphere |
2 |
|
- |
LSH-HRFZ-SI-D2 |
|
sphere |
3 |
|
- |
LSH-HRFZ-SI-D3 |
|
sphere |
4 |
|
- |
LSH-HRFZ-SI-D4 |
|
sphere |
4.5 |
|
- |
LSH-HRFZ-SI-D4.5 |
|
sphere |
4.9 |
|
- |
LSH-HRFZ-SI-D4.9 |
|
sphere |
5 |
|
- |
LSH-HRFZ-SI-D5 |
|
sphere |
6 |
|
- |
LSH-HRFZ-SI-D6 |
|
sphere |
7 |
|
- |
LSH-HRFZ-SI-D7 |
|
sphere |
8 |
|
- |
LSH-HRFZ-SI-D8 |
|
sphere |
9 |
|
- |
LSH-HRFZ-SI-D9 |
|
sphere |
9.5 |
|
- |
LSH-HRFZ-SI-D9.5 |
|
sphere |
9.85 |
|
- |
LSH-HRFZ-SI-D9.85 |
|
sphere |
10 |
|
- |
LSH-HRFZ-SI-D10 |
|
sphere |
10.714 |
|
- |
LSH-HRFZ-SI-D10.714 |
|
sphere |
12 |
|
- |
LSH-HRFZ-SI-D12 |
|
sphere |
12.8 |
|
- |
LSH-HRFZ-SI-D12.8 |
|
sphere |
13.5 |
|
- |
LSH-HRFZ-SI-D13.5 |
|
sphere |
15 |
|
- |
LSH-HRFZ-SI-D15 |
|
hyper-hemisphere |
2 |
|
1.3 |
LHS-HRFZ-SI-D2-T1.3 |
|
hyper-hemisphere |
2 |
|
1.3 |
LHS-HRFZ-SI-D2-T1.3-C |
|
hyper-hemisphere |
2 |
|
1.37 |
LHS-HRFZ-SI-D2-T1.37-C |
|
hyper-hemisphere |
2 |
|
1.41 |
LHS-HRFZ-SI-D2-T1.41 |
|
hyper-hemisphere |
3 |
|
1.6 |
LHS-HRFZ-SI-D3-T1.6 |
|
hyper-hemisphere |
3 |
|
1.62 |
LHS-HRFZ-SI-D3-T1.62 |
|
hyper-hemisphere |
3 |
|
1.7 |
LHS-HRFZ-SI-D3-T1.7 |
|
hyper-hemisphere |
3 |
|
1.8 |
LHS-HRFZ-SI-D3-T1.8 |
|
hyper-hemisphere |
3 |
|
1.88 |
LHS-HRFZ-SI-D3-T1.88 |
|
hyper-hemisphere |
3 |
|
1.94 |
LHS-HRFZ-SI-D3.02-T1.94 |
|
hyper-hemisphere |
3 |
|
1.96 |
LHS-HRFZ-SI-D3-T1.96 |
|
hyper-hemisphere |
3 |
|
2 |
LHS-HRFZ-SI-D3-T2 |
|
hyper-hemisphere |
3.02 |
|
1.81 |
LHS-HRFZ-SI-D3.02-T1.81 |
|
hyper-hemisphere |
4 |
|
2.085 |
LHS-HRFZ-SI-D4-T2.085 |
|
hyper-hemisphere |
4 |
|
2.1 |
LHS-HRFZ-SI-D4-T2.1 |
|
hyper-hemisphere |
4 |
|
2.1 |
LHS-HRFZ-SI-D4-T2.1-C |
|
hyper-hemisphere |
4 |
|
2.2 |
LHS-HRFZ-SI-D4-T2.2 |
|
hyper-hemisphere |
4 |
|
2.3 |
LHS-HRFZ-SI-D4-T2.3 |
|
hyper-hemisphere |
4 |
|
2.36 |
LHS-HRFZ-SI-D4-T2.36 |
|
hyper-hemisphere |
4 |
|
2.5 |
LHS-HRFZ-SI-D4-T2.5 |
|
hyper-hemisphere |
4 |
|
2.5 |
LHS-HRFZ-SI-D4-T2.5-С |
|
hyper-hemisphere |
4 |
|
2.55 |
LHS-HRFZ-SI-D4-T2.55 |
|
hyper-hemisphere |
4 |
|
2.58 |
LHS-HRFZ-SI-D4-T2.58 |
|
hyper-hemisphere |
4 |
|
2.6 |
LHS-HRFZ-SI-D4-T2.6 |
|
hyper-hemisphere |
4 |
|
2.64 |
LHS-HRFZ-SI-D4-T2.64 |
|
hyper-hemisphere |
4 |
|
2.67 |
LHS-HRFZ-SI-D4-T2.67 |
|
hyper-hemisphere |
4 |
|
2.82 |
LHS-HRFZ-SI-D4-T2.82 |
|
hyper-hemisphere |
4 |
|
2.82 |
LHS-HRFZ-SI-D4-T2.82-С |
|
hyper-hemisphere |
4.5 |
|
2.88 |
LHS-HRFZ-SI-D4.5-T2.88 |
|
hyper-hemisphere |
4.9 |
|
2.8 |
LHS-HRFZ-SI-D4.9-T2.8 |
|
hyper-hemisphere |
4.9 |
|
2.8 |
LHS-HRFZ-SI-D4.9-T2.8-C |
|
hyper-hemisphere |
5 |
|
2.73 |
LHS-HRFZ-SI-D5-T2.73 |
|
hyper-hemisphere |
5 |
|
2.8 |
LHS-HRFZ-SI-D5-T2.8 |
|
hyper-hemisphere |
5 |
|
2.9 |
LHS-HRFZ-SI-D5-T2.9 |
|
hyper-hemisphere |
5 |
|
3.35 |
LHS-HRFZ-SI-D5-T3.35 |
|
hyper-hemisphere |
6 |
|
3.1 |
LHS-HRFZ-SI-D6-T3.1 |
|
hyper-hemisphere |
6 |
|
3.3 |
LHS-HRFZ-SI-D6-T3.3 |
|
hyper-hemisphere |
6 |
|
3.4 |
LHS-HRFZ-SI-D6-T3.4 |
|
hyper-hemisphere |
6 |
|
3.45 |
LHS-HRFZ-SI-D6-T3.45 |
|
hyper-hemisphere |
6 |
|
3.45 |
LHS-HRFZ-SI-D6-T3.45-C |
|
hyper-hemisphere |
6 |
|
3.47 |
LHS-HRFZ-SI-D6-T3.47 |
|
hyper-hemisphere |
6 |
|
3.5 |
LHS-HRFZ-SI-D6-T3.5 |
|
hyper-hemisphere |
6 |
|
3.53 |
LHS-HRFZ-SI-D6-T3.53 |
|
hyper-hemisphere |
6 |
|
3.7 |
LHS-HRFZ-SI-D6-T3.7 |
|
hyper-hemisphere |
6 |
|
3.7 |
LHS-HRFZ-SI-D6-T3.7-С |
|
hyper-hemisphere |
6 |
|
3.8 |
LHS-HRFZ-SI-D6-T3.8 |
|
hyper-hemisphere |
6 |
|
3.87 |
LHS-HRFZ-SI-D6-T3.87 |
|
hyper-hemisphere |
6 |
|
3.92 |
LHS-HRFZ-SI-D6-T3.94 |
|
hyper-hemisphere |
6 |
|
4 |
LHS-HRFZ-SI-D6-T4 |
|
hyper-hemisphere |
6 |
|
4 |
LHS-HRFZ-SI-D6-T4-С |
|
hyper-hemisphere |
7 |
|
4.1 |
LHS-HRFZ-SI-D7-T4.1 |
|
hyper-hemisphere |
7 |
|
4.45 |
LHS-HRFZ-SI-D7-T4.45 |
|
hyper-hemisphere |
7 |
|
4.55 |
LHS-HRFZ-SI-D7-T4.55 |
|
hyper-hemisphere |
7 |
|
4.6 |
LHS-HRFZ-SI-D7-T4.6 |
|
hyper-hemisphere |
8 |
|
4.22 |
LHS-HRFZ-SI-D8-T4.22 |
|
hyper-hemisphere |
8 |
|
4.4 |
LHS-HRFZ-SI-D8-T4.4 |
|
hyper-hemisphere |
8 |
|
4.4 |
LHS-HRFZ-SI-D8-T4.4-С |
|
hyper-hemisphere |
8 |
|
4.6 |
LHS-HRFZ-SI-D8-T4.6 |
|
hyper-hemisphere |
8 |
|
4.795 |
LHS-HRFZ-SI-D8-T4.795 |
|
hyper-hemisphere |
8 |
|
4.8 |
LHS-HRFZ-SI-D8-T4.8 |
|
hyper-hemisphere |
8 |
|
4.8 |
LHS-HRFZ-SI-D8-T4.8-С |
|
hyper-hemisphere |
8 |
|
5.17 |
LHS-HRFZ-SI-D8-T5.17 |
|
hyper-hemisphere |
8 |
|
5.17 |
LHS-HRFZ-SI-D8-T5.17-С |
|
hyper-hemisphere |
8 |
|
5.4 |
LHS-HRFZ-SI-D8-T5.4 |
|
hyper-hemisphere |
8 |
|
5.4 |
LHS-HRFZ-SI-D8-T5.4-С |
|
hyper-hemisphere |
9 |
|
4.3 |
LHS-HRFZ-SI-D9-T4.3 |
|
hyper-hemisphere |
9 |
|
5 |
LHS-HRFZ-SI-D9-T5 |
|
hyper-hemisphere |
9 |
|
5.7 |
LHS-HRFZ-SI-D9-T5.7 |
|
hyper-hemisphere |
9 |
|
5.9 |
LSH-HRFZ-SI-D9-Т5.9 |
|
hyper-hemisphere |
9 |
|
6.5 |
LHS-HRFZ-SI-D9-T6.5 |
|
hyper-hemisphere |
9.5 |
|
5.33 |
LHS-HRFZ-SI-D9.5-T5.33 |
|
hyper-hemisphere |
9.85 |
|
5.8 |
LHS-HRFZ-SI-D9.85-T5.8-С |
|
hyper-hemisphere |
9.85 |
|
6 |
LHS-HRFZ-SI-D9.85-T6-С |
|
hyper-hemisphere |
9.85 |
|
6.25 |
LHS-HRFZ-SI-D9.85-T6.25-С |
|
hyper-hemisphere |
10 |
|
5 |
LHS-HRFZ-SI-D10-T5 |
|
hyper-hemisphere |
10 |
|
5.5 |
LHS-HRFZ-SI-D10-T5.5-С |
|
hyper-hemisphere |
10 |
|
5.5 |
LHS-HRFZ-SI-D10-T5.5-С |
|
hyper-hemisphere |
10 |
|
5.5 |
LHS-HRFZ-SI-D10-T5.5 |
|
hyper-hemisphere |
10 |
|
5.7 |
LHS-HRFZ-SI-D10-T5.7 |
|
hyper-hemisphere |
10 |
|
5.8 |
LHS-HRFZ-SI-D10-T5.8 |
|
hyper-hemisphere |
10 |
|
5.82 |
LHS-HRFZ-SI-D10-T5.82 |
|
hyper-hemisphere |
10 |
|
5.825 |
LHS-HRFZ-SI-D10-T5.825-C |
|
hyper-hemisphere |
10 |
|
5.84 |
LHS-HRFZ-SI-D10-T5.84 |
|
hyper-hemisphere |
10 |
|
5.84 |
LHS-HRFZ-SI-D10-T5.84-C |
|
hyper-hemisphere |
10 |
|
5.85 |
LHS-HRFZ-SI-D10-T5.85 |
|
hyper-hemisphere |
10 |
|
5.9 |
LHS-HRFZ-SI-D10-T5.9 |
|
hyper-hemisphere |
10 |
|
5.92 |
LHS-HRFZ-SI-D10-T5.92 |
|
hyper-hemisphere |
10 |
|
5.95 |
LHS-HRFZ-SI-D10-T5.95 |
|
hyper-hemisphere |
10 |
|
5.96 |
LHS-HRFZ-SI-D10-T5.96 |
|
hyper-hemisphere |
10 |
|
6.05 |
LHS-HRFZ-SI-D10-T6.05 |
|
hyper-hemisphere |
10 |
|
6.06 |
LHS-HRFZ-SI-D10-T6.06 |
|
hyper-hemisphere |
10 |
|
6.1 |
LHS-HRFZ-SI-D10-T6.1 |
|
hyper-hemisphere |
10 |
|
6.12 |
LHS-HRFZ-SI-D10-T6.12 |
|
hyper-hemisphere |
10 |
|
6.14 |
LHS-HRFZ-SI-D10-T6.14 |
|
hyper-hemisphere |
10 |
|
6.15 |
LHS-HRFZ-SI-D10-T6.15 |
|
hyper-hemisphere |
10 |
|
6.16 |
LHS-HRFZ-SI-D10-T6.16 |
|
hyper-hemisphere |
10 |
|
6.19 |
LHS-HRFZ-SI-D10-T6.19 |
|
hyper-hemisphere |
10 |
|
6.19 |
LHS-HRFZ-SI-D10-T6.19-C |
|
hyper-hemisphere |
10 |
|
6.24 |
LHS-HRFZ-SI-D10-T6.24 |
|
hyper-hemisphere |
10 |
|
6.3140 |
LHS-HRFZ-SI-D10-T6.3140 |
|
hyper-hemisphere |
10 |
|
6.3264 |
LHS-HRFZ-SI-D10-T6.3264 |
|
hyper-hemisphere |
10 |
|
6.35 |
LHS-HRFZ-SI-D10-T6.35 |
|
hyper-hemisphere |
10 |
|
6.4 |
LHS-HRFZ-SI-D10-T6.4 |
|
hyper-hemisphere |
10 |
|
6.45 |
LHS-HRFZ-SI-D10-T6.45 |
|
hyper-hemisphere |
10 |
|
6.5 |
LHS-HRFZ-SI-D10-T6.5 |
|
hyper-hemisphere |
10 |
|
6.5 |
LHS-HRFZ-SI-D10-T6.5-С |
|
hyper-hemisphere |
10 |
|
6.6 |
LHS-HRFZ-SI-D10-T6.6 |
|
hyper-hemisphere |
10 |
|
6.7 |
LHS-HRFZ-SI-D10-T6.7 |
|
hyper-hemisphere |
10 |
|
6.73 |
LHS-HRFZ-SI-D10-T6.73 |
|
hyper-hemisphere |
10 |
|
6.73 |
LHS-HRFZ-SI-D10-T6.73-C |
|
hyper-hemisphere |
10 |
|
7 |
LHS-HRFZ-SI-D10-T7 |
|
hyper-hemisphere |
10 |
|
7.3 |
LHS-HRFZ-SI-D10-T7.3 |
|
hyper-hemisphere |
11.95 |
|
7.25 |
LHS-HRFZ-SI-D11.95-T7.25 |
|
hyper-hemisphere |
12 |
|
6.8 |
LHS-HRFZ-SI-D12-T6.8 |
|
hyper-hemisphere |
12 |
|
7.1 |
LHS-HRFZ-SI-D12-T7.1 |
|
hyper-hemisphere |
12 |
|
7.25 |
LHS-HRFZ-SI-D12-T7.25 |
|
hyper-hemisphere |
12 |
|
7.7 |
LHS-HRFZ-SI-D12-T7.7 |
|
hyper-hemisphere |
12 |
|
7.7 |
LHS-HRFZ-SI-D12-T7.7-С |
|
hyper-hemisphere |
12 |
|
7.72 |
LHS-HRFZ-SI-D12-T7.72-С |
|
hyper-hemisphere |
12 |
|
7.9 |
LHS-HRFZ-SI-D12-T7.9 |
|
hyper-hemisphere |
12 |
|
7.95 |
LHS-HRFZ-SI-D12-T7.95 |
|
hyper-hemisphere |
12 |
|
8 |
LHS-HRFZ-SI-D12-T8 |
|
hyper-hemisphere |
12 |
|
8.08 |
LHS-HRFZ-SI-D12-T8.08-С |
|
hyper-hemisphere |
12 |
|
8.3 |
LHS-HRFZ-SI-D12-T8.3 |
|
hyper-hemisphere |
12.8 |
|
7.77 |
LHS-HRFZ-SI-D12.8-T7.77 |
|
hyper-hemisphere |
13 |
|
8 |
LHS-HRFZ-SI-D13-T8 |
|
hyper-hemisphere |
13.5 |
|
8.36 |
LHS-HRFZ-SI-D13.5-T8.36 |
|
hyper-hemisphere |
14 |
|
8.69 |
LHS-HRFZ-SI-D14-T8.69 |
|
hyper-hemisphere |
15 |
|
9.4 |
LHS-HRFZ-SI-D15-T9.4 |
|
hyper-hemisphere |
15 |
|
10 |
LHS-HRFZ-SI-D15-T10 |
|
hyper-hemisphere |
15 |
|
10.05 |
LHS-HRFZ-SI-D15-T10.05 |
|
hyper-hemisphere |
15 |
|
10.1 |
LHS-HRFZ-SI-D15-T10.1 |
|
hyper-hemisphere |
15 |
|
10.4 |
LHS-HRFZ-SI-D15-T10.4 |
|
hyper-hemisphere |
20 |
|
12.55 |
LHS-HRFZ-SI-D20-T12.55 |
|
hyper-hemisphere |
20 |
|
13 |
LHS-HRFZ-SI-D20-T13 |
|
hyper-hemisphere |
20 |
|
14.14 |
LHS-HRFZ-SI-D20-T14.14 |
|
hyper-hemisphere |
24 |
|
15.3 |
LHS-HRFZ-SI-D24-T15.3 |
|
hyper-hemisphere |
25 |
|
14.8 |
LHS-HRFZ-SI-D25-T14.8 |
|
hyper-hemisphere |
25 |
|
15.5 |
LHS-HRFZ-SI-D25-T15.5 |
|
hyper-hemisphere |
25 |
|
15.8 |
LHS-HRFZ-SI-D25-T15.8 |
|
hyper-hemisphere |
25 |
|
16.08 |
LHS-HRFZ-SI-D25-T16.08 |
|
hyper-hemisphere |
25.4 |
|
16 |
LHS-HRFZ-SI-D25.4-T16 |
|
hyper-hemisphere |
51 |
|
32.9 |
LHS-HRFZ-SI-D51-T32.9 |
|
hyper-hemisphere |
101.6 |
|
64.77 |
LHS-HRFZ-SI-D101.6-T64.77 |
|
hyper-hemisphere |
150 |
|
100 |
LHS-HRFZ-SI-D150-T100 |
|
hemisphere |
2 |
|
1 |
LHS-HRFZ-SI-D2-T1 |
|
hemisphere |
2 |
|
1 |
LHS-HRFZ-SI-D2-T1-C |
|
hemisphere |
3 |
|
1.5 |
LHS-HRFZ-SI-D3-T1.5 |
|
hemisphere |
4 |
|
2 |
LHS-HRFZ-SI-D4-T2 |
|
hemisphere |
5 |
|
2.5 |
LHS-HRFZ-SI-D5-T2.5 |
|
hemisphere |
6 |
|
3 |
LHS-HRFZ-SI-D6-T3 |
|
hemisphere |
7.18 |
|
3.59 |
LHS-HRFZ-SI-D7.18-T3.59 |
|
hemisphere |
8 |
|
4 |
LHS-HRFZ-SI-D8-T4 |
|
hemisphere |
10 |
|
5 |
LHS-HRFZ-SI-D10-T5 |
|
hemisphere |
10 |
|
5 |
LHS-HRFZ-SI-D10-T5-C |
|
hemisphere |
12 |
|
6 |
LHS-HRFZ-SI-D12-T6 |
|
hemisphere |
12 |
|
6 |
LHS-HRFZ-SI-D12-T6-С |
|
hemisphere |
12.5 |
|
6.25 |
LHS-HRFZ-SI-D12.5-T6.25 |
|
hemisphere |
12.8 |
|
6.4 |
LHS-HRFZ-SI-D12.8-T6.4 |
|
hemisphere |
13.5 |
|
6.75 |
LHS-HRFZ-SI-D13.5-T6.75 |
|
hemisphere |
15 |
|
7.5 |
LHS-HRFZ-SI-D15-T7.5 |
|
hemisphere |
25 |
|
12.5 |
LHS-HRFZ-SI-D25-T12.5 |
|
hemisphere |
25 |
|
12.5 |
LHS-HRFZ-SI-D25-T12.5 |
|
hemisphere |
25 |
|
12.5 |
LHS-HRFZ-SI-D25-T12.5 |
|
hypo-hemisphere |
2 |
|
0.5 |
LHS-HRFZ-SI-D2-T0.5 |
|
hypo-hemisphere |
2 |
|
0.66 |
LHS-HRFZ-SI-D2-T0.66 |
|
hypo-hemisphere |
2 |
|
0.78 |
LHS-HRFZ-SI-D2-T0.78 |
|
hypo-hemisphere |
2 |
|
0.8 |
LHS-HRFZ-SI-D2-T0.8 |
|
hypo-hemisphere |
2 |
|
0.82 |
LHS-HRFZ-SI-D2-T0.82 |
|
hypo-hemisphere |
2 |
|
0.86 |
LHS-HRFZ-SI-D2-T0.86 |
|
hypo-hemisphere |
2 |
|
0.91 |
LHS-HRFZ-SI-D2-T0.91 |
|
hypo-hemisphere |
3 |
|
1.35 |
LHS-HRFZ-SI-D3-T1.35 |
|
hypo-hemisphere |
3 |
|
1.4 |
LHS-HRFZ-SI-D3-T1.4 |
|
hypo-hemisphere |
6 |
|
2.6 |
LHS-HRFZ-SI-D6-T2.6 |
|
hypo-hemisphere |
10 |
|
4.35 |
LHS-HRFZ-SI-D10-T4.35 |
|
hypo-hemisphere |
10 |
|
4.65 |
LHS-HRFZ-SI-D10-T4.65 |
|
hypo-hemisphere |
10 |
|
4.9 |
LHS-HRFZ-SI-D10-T4.65 |
|
hypo-hemisphere |
11.5 |
|
4.3 |
LHS-HRFZ-SI-D11.5-T4.3 |
|
hypo-hemisphere |
12 |
|
5 |
LHS-HRFZ-SI-D12-T5 |
|
hypo-hemisphere |
12 |
|
5.8 |
LHS-HRFZ-SI-D12-T5.8 |
|
hypo-hemisphere |
15 |
|
7.2 |
LHS-HRFZ-SI-D15-T7.2 |
|
hypo-hemisphere |
25 |
|
11.85 |
LHS-HRFZ-SI-D25-T11.85 |
|
hypo-hemisphere |
25.4 |
|
10 |
LHS-HRFZ-SI-D25.4-T10 |
|
bullet-lens |
2.83 |
|
2 |
LB-HRFZ-SI-D2.83-T2 |
|
bullet-lens |
3 |
|
1.65 |
LB-HRFZ-SI-D3-T1.65-С |
|
bullet-lens |
3 |
|
1.8 |
LB-HRFZ-SI-D3-T1.8-С |
|
bullet-lens |
3 |
|
1.95 |
LB-HRFZ-SI-D3-T1.95-С |
|
bullet-lens |
3 |
|
2.1 |
LB-HRFZ-SI-D3-T2.1 |
|
bullet-lens |
4 |
|
2.2 |
LB-HRFZ-SI-D4-T2.2-С |
|
bullet-lens |
4 |
|
2.4 |
LB-HRFZ-SI-D4-T2.4-С |
|
bullet-lens |
4 |
|
2.6 |
LB-HRFZ-SI-D4-T2.6-С |
|
bullet-lens |
4 |
|
2.67 |
LB-HRFZ-SI-D4-T2.67 |
|
bullet-lens |
4 |
|
2.91 |
LB-HRFZ-SI-D4-T2.91 |
|
bullet-lens |
4 |
|
3 |
LB-HRFZ-SI-D4-T3 |
|
bullet-lens |
4 |
|
3.13 |
LB-HRFZ-SI-D4-T3.13 |
|
bullet-lens |
4.05 |
|
2.88 |
LB-HRFZ-SI-D4.05-T2.88 |
|
bullet-lens |
4.05 |
|
3.03 |
LB-HRFZ-SI-D4.05-T3.03 |
|
bullet-lens |
4.05 |
|
3.16 |
LB-HRFZ-SI-D4.05-T3.16 |
|
bullet-lens |
5 |
|
3.03 |
LB-HRFZ-SI-D5-T3.03 |
|
bullet-lens |
5 |
|
3.13 |
LB-HRFZ-SI-D5-T3.13 |
|
bullet-lens |
5 |
|
3.9 |
LB-HRFZ-SI-D5-T3.9 |
|
bullet-lens |
6 |
|
3.2 |
LB-HRFZ-SI-D6-T3.2 |
|
bullet-lens |
6 |
|
3.3 |
LB-HRFZ-SI-D6-T3.3-С |
|
bullet-lens |
6 |
|
3.6 |
LB-HRFZ-SI-D6-T3.6-С |
|
bullet-lens |
6 |
|
3.6 |
LB-HRFZ-SI-D6-T3.6 |
|
bullet-lens |
6 |
|
3.7 |
LB-HRFZ-SI-D6-T3.7 |
|
bullet-lens |
6 |
|
3.9 |
LB-HRFZ-SI-D6-T3.9-С |
|
bullet-lens |
6 |
|
3.96 |
LB-HRFZ-SI-D6-T3.96 |
|
bullet-lens with the indent |
6 |
|
3.96 |
LB-HRFZ-SI-D6-T3.96 |
|
bullet-lens |
6 |
|
4.2 |
LB-HRFZ-SI-D6-T4.2 |
|
bullet-lens |
6 |
|
4.2 |
LB-HRFZ-SI-D6-T4.2-С |
|
bullet-lens |
7.95 |
|
5.4 |
LB-HRFZ-SI-D7.95-T5.4 |
|
bullet-lens |
8 |
|
4 |
LB-HRFZ-SI-D8-T4-C |
|
bullet-lens |
8 |
|
4.4 |
LB-HRFZ-SI-D8-T4.4-C |
|
bullet-lens |
8 |
|
4.8 |
LB-HRFZ-SI-D8-T4.8-C |
|
bullet-lens |
8 |
|
4.9 |
LB-HRFZ-SI-D8-T4.95 |
|
bullet-lens |
8 |
|
5.2 |
LB-HRFZ-SI-D8-T5.2-C |
|
bullet-lens |
8 |
|
5.21 |
LB-HRFZ-SI-D8-T5.21 |
|
bullet-lens |
8 |
|
5.3 |
LB-HRFZ-SI-D8-T5.3 |
|
bullet-lens |
9 |
|
6.6 |
LB-HRFZ-SI-D9-T6.6 |
|
bullet-lens |
9 |
|
6.65 |
LB-HRFZ-SI-D9-T6.65 |
|
bullet-lens |
9 |
|
6.65 |
LB-HRFZ-SI-D9-T6.65 |
|
bullet-lens |
9 |
|
6.7 |
LB-HRFZ-SI-D9-T6.7 |
|
bullet-lens |
9 |
|
6.675 |
LB-HRFZ-SI-D9-T6.675 |
|
bullet-lens |
9.86 |
|
6.64 |
LB-HRFZ-SI-D9.86-T6.64 |
|
bullet-lens |
9.9 |
|
5.62 |
LB-HRFZ-SI-D9.9-T5.62 |
|
bullet-lens |
10 |
|
5.62 |
LB-HRFZ-SI-D10-T5.62 |
|
bullet-lens |
10 |
|
6 |
LB-HRFZ-SI-D10-T6 |
|
bullet-lens |
10 |
|
6.46 |
LB-HRFZ-SI-D10-T6.46 |
|
bullet-lens |
10 |
|
6.52 |
LB-HRFZ-SI-D10-T6.52 |
|
bullet-lens |
10 |
|
6.828 |
LB-HRFZ-SI-D10-T6.828-C |
|
bullet-lens |
10 |
|
7.25 |
LB-HRFZ-SI-D10-T7.25 |
|
bullet-lens |
10 |
|
8.46 |
LB-HRFZ-SI-D10-T8.46 |
|
bullet-lens |
10 |
|
8.5 |
LB-HRFZ-SI-D10-T8.5 |
|
bullet-lens |
11.2 |
|
7.69 |
LB-HRFZ-SI-D11.2-T7.69-C |
|
bullet-lens |
12 |
|
7.5 |
LB-HRFZ-SI-D12-T7.5 |
|
bullet-lens |
12 |
|
7.6 |
LB-HRFZ-SI-D12-T7.6 |
|
bullet-lens |
12 |
|
8 |
LB-HRFZ-SI-D12-T8 |
|
bullet-lens |
14 |
|
9.1 |
LB-HRFZ-SI-D14-T9.1 |
|
bullet-lens |
16 |
|
10.5 |
LB-HRFZ-SI-D16-T10.5 |
|
plano-convex |
10 |
4.4 |
2.7 |
LPX-HRFZ-SI-D10-F2.7 |
|
plano-convex |
12.7 |
9.8 |
3 |
LPX-HRFZ-SI-D12.7-F9.8 |
|
plano-convex |
25.4 |
9.8 |
5.7 |
LPX-HRFZ-SI-D25.4-F9.8 |
|
plano-convex |
25.4 |
9.8 |
5.7 |
LPX-HRFZ-SI-D25.4-F9.8-С |
|
plano-convex |
25.4 |
9.8 |
5.7 |
LPX-HRFZ-SI-D25.4-F9.8 |
|
plano-convex |
25.4 |
25 |
4.5 |
LPX-HRFZ-SI-D25.4-F25 |
|
plano-convex |
25.4 |
50 |
3.7 |
LPX-HRFZ-SI-D25.4-F50 |
|
plano-convex |
38 |
|
10 |
LPX-HRFZ-SI-D38-Т10 |
|
plano-convex |
38.1 |
25 |
5.05 |
LPX-HRFZ-SI-D38.1-F25 |
|
plano-convex |
38.1 |
25 |
5.05 |
LPX-HRFZ-SI-D38.1-F25-C |
|
plano-convex |
38.1 |
38.1 |
5 |
LPX-HRFZ-SI-D38.1-F38.1 |
|
plano-convex |
38.1 |
50 |
5 |
LPX-HRFZ-SI-D38.1-F50 |
|
plano-convex |
38.1 |
76.9 |
2.02 |
LPX-HRFZ-SI-D38.1-F76.9 |
|
plano-convex |
38.1 |
150 |
4 |
LPX-HRFZ-SI-D38.1-F150 |
|
plano-convex |
55 |
- |
6 |
LPХ-HRFZ-SI-D55-Т6-С |
|
plano-convex |
55 |
- |
6 |
LPХ-HRFZ-SI-D55-Т6 |
|
plano-convex |
75 |
25 |
16.1 |
LPX-HRFZ-SI-D75-F25 |
|
plano-convex |
75 |
200 |
4.4 |
LPX-HRFZ-SI-D75-F200 |
|
plano-convex |
76.2 |
25 |
16.1 |
LPX-HRFZ-SI-D76.2-F25 |
|
plano-convex |
76.2 |
75 |
6.9 |
LPX-HRFZ-SI-D76.2-F75 |
|
plano-convex |
76.2 |
200 |
4.4 |
LPX-HRFZ-SI-D76.2-F200 |
|
plano-convex with central hole |
19 |
- |
- |
LPX-HRFZ-SI-D19-C |
|
plano-concave |
50.8 |
414 |
3 |
LPС-HRFZ-SI-D50.8-T3 |
|
bi-convex |
25 |
23.2 |
2.4 |
LBX-HRFZ-SI-D25-F23.2 |
|
bi-convex |
75 |
100 |
20 |
LBX-HRFZ-SI-D75-F100 |
|
negative meniscus |
12 |
6.68 |
1 |
LNM-HRFZ-SI-D12-F6.68 |
|
positive meniscus |
25.4 |
25 |
3.5 |
LPM-HRFZ-SI-D25.4-F25 |
|
positive meniscus |
25.4 |
25 |
5 |
LPM-HRFZ-SI-D25.4-F25 |
|
positive meniscus |
25.4 |
25 |
5 |
LPM-HRFZ-SI-D25.4-F25-С |
|
positive meniscus |
25.4 |
25 |
5 |
LPM-HRFZ-SI-D25.4-F25-С |
|
positive meniscus |
25.4 |
25 |
5 |
LPM-HRFZ-SI-D25.4-F25-С |
|
positive meniscus |
25.4 |
25 |
5 |
LPM-HRFZ-SI-D25.4-F25 |
|
positive meniscus |
25.4 |
25.4 |
5 |
LPM-HRFZ-SI-D25.4-F25.4 |
|
positive meniscus |
25.4 |
50 |
5 |
LPM-HRFZ-SI-D25.4-F50 |
|
positive meniscus |
25.4 |
50 |
5 |
LPM-HRFZ-SI-D25.4-F50-С |
|
positive meniscus |
25.4 |
100 |
5 |
LPM-HRFZ-SI-D25.4-F100 |
|
positive meniscus |
25.4 |
200 |
5 |
LPM-HRFZ-SI-D25.4-F200 |
|
positive meniscus |
25.4 |
400 |
5 |
LPM-HRFZ-SI-D25.4-F400 |
|
positive meniscus |
30 |
13 |
7 |
LPM-HRFZ-SI-D30-F13 |
|
positive meniscus |
30 |
13 |
7 |
LPM-HRFZ-SI-D30-F13-С |
|
positive meniscus |
30 |
15 |
6.4 |
LPM-HRFZ-SI-D30-F15-С |
|
positive meniscus |
38 |
46.6 |
9 |
LPM-HRFZ-SI-D38-F46.6-С |
|
positive meniscus |
38.1 |
38.1 |
5 |
LPM-HRFZ-SI-D38.1-F38.1 |
|
positive meniscus |
38.1 |
50 |
5 |
LPM-HRFZ-SI-D38.1-F50 |
|
positive meniscus |
38.1 |
75 |
5 |
LPM-HRFZ-SI-D38.1-F75 |
|
positive meniscus |
38.1 |
100 |
5 |
LPM-HRFZ-SI-D38.1-F100 |
|
positive meniscus |
38.1 |
150 |
4 |
LPM-HRFZ-SI-D38.1-F150 |
|
positive meniscus |
38.1 |
150 |
5 |
LPM-HRFZ-SI-D38.1-F150 |
|
positive meniscus |
38.1 |
200 |
5 |
LPM-HRFZ-SI-D38.1-F200 |
|
positive meniscus |
40 |
17 |
8.4 |
LPM-HRFZ-SI-D40-F17-С |
|
positive meniscus |
40 |
17 |
8.5 |
LPM-HRFZ-SI-D40-F17 |
|
positive meniscus |
40 |
20 |
8.4 |
LPM-HRFZ-SI-D40-F20-С |
|
positive meniscus |
50.8 |
25 |
7.8 |
LPM-HRFZ-SI-D50.8-F25 |
|
positive meniscus |
50.8 |
50 |
5 |
LPM-HRFZ-SI-D50.8-F50 |
|
positive meniscus |
50.8 |
50 |
5 |
LPM-HRFZ-SI-D50.8-F50-С |
|
positive meniscus |
50.8 |
50 |
7 |
LPM-HRFZ-SI-D50.8-F50 |
|
positive meniscus |
50.8 |
50 |
7 |
LPM-HRFZ-SI-D50.8-F50-С |
|
positive meniscus |
50.8 |
75 |
5 |
LPM-HRFZ-SI-D50.8-F75 |
|
positive meniscus |
50.8 |
75 |
7 |
LPM-HRFZ-SI-D50.8-F75 |
|
positive meniscus |
50.8 |
100 |
5 |
LPM-HRFZ-SI-D50.8-F100 |
|
positive meniscus |
50.8 |
100 |
5 |
LPM-HRFZ-SI-D50.8-F100 |
|
positive meniscus |
50.8 |
100 |
7 |
LPM-HRFZ-SI-D50.8-F100 |
|
positive meniscus |
50.8 |
150 |
7 |
LPM-HRFZ-SI-D50.8-F150 |
|
positive meniscus |
50.8 |
200 |
5 |
LPM-HRFZ-SI-D50.8-F200 |
|
positive meniscus |
50.8 |
200 |
5 |
LPM-HRFZ-SI-D50.8-F200 |
|
positive meniscus |
50.8 |
200 |
7 |
LPM-HRFZ-SI-D50.8-F200 |
|
positive meniscus |
61 |
- |
7.2 |
LPM-HRFZ-SI-D61-Т7.2-С |
|
positive meniscus |
63 |
59.53 |
5.7 |
LPM-HRFZ-SI-D63-F59.53-С |
|
cylindrical hyper-hemisphere |
10х15 |
|
5.2 |
LCHS-HRFZ-SI-L10-H15-T5.2 |
|
cylindrical hyper-hemisphere |
10х15 |
|
6.56 |
LCHS-HRFZ-SI-L10-H15-T6.56 |
|
cylindrical hyper-hemisphere |
10х20 |
|
6.2 |
LCHS-HRFZ-SI-L10-H20-T6.2 |
|
cylindrical hyper-hemisphere |
10х35 |
|
6.2 |
LCHS-HRFZ-SI-L10-H35-T6.2 |
|
cylindrical hyper-hemisphere |
12х24 |
|
8.48 |
LCHS-HRFZ-SI-L12-H24-T8.48 |
|
cylindrical hyper-hemisphere |
12.7х38.1 |
|
7.62 |
LCHS-HRFZ-SI-L12.7-H38.1-T7.62 |
|
cylindrical hyper-hemisphere |
20х6 |
|
4 |
LCHS-HRFZ-SI-L20-H6-T4 |
|
cylindrical hyper-hemisphere |
25x25 |
30 |
3.1 |
LCHS-HRFZ-SI-L25-H25-T3.1 |
|
cylindrical hyper-hemisphere |
25х50 |
50 |
2.6 |
LCHS-HRFZ-SI-L25-H50-F50 |
|
cylindrical hyper-hemisphere |
25х100 |
|
17.25 |
LCHS-HRFZ-SI-L25-H100-T17.25 |
|
cylindrical plano- convex |
150 |
850 |
7.5 |
LРC-CYL-HRFZ-SI-D150-F850 |
Tydex TPX透镜的标准规格
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
plano-convex |
22.4 |
50 |
4.9 |
LPX-TPX-D22.4-F50 |
|
plano-convex |
22.4 |
50 |
5 |
LPX-TPX-D22.4-F50 |
|
plano-convex |
25.4 |
50 |
5.83 |
LPX-TPX-D25.4-F50 |
|
plano-convex |
25.4 |
100 |
3.78 |
LPX-TPX-D25.4-F100 |
|
plano-convex |
25.4 |
200 |
2.88 |
LPX-TPX-D25.4-F200 |
|
plano-convex |
38.1 |
50 |
12 |
LPX-TPX-D38.1-F50 |
|
plano-convex |
38.1 |
50 |
13.11 |
LPX-TPX-D38.1-F50 |
|
plano-convex |
38.1 |
75 |
7.8 |
LPX-TPX-D38.1-F75 |
|
plano-convex |
38.1 |
75 |
8.74 |
LPX-TPX-D38.1-F75 |
|
plano-convex |
38.1 |
100 |
7.13 |
LPX-TPX-D38.1-F100 |
|
plano-convex |
38.1 |
150 |
5.68 |
LPX-TPX-D38.1-F150 |
|
plano-convex |
38.1 |
150 |
5.68 |
LPX-TPX-D38.1-F150 |
|
plano-convex |
38.1 |
200 |
4.5 |
LPX-TPX-D38.1-F200 |
|
plano-convex |
38.1 |
200 |
4.5 |
LPX-TPX-D38.1-F200 |
|
plano-convex |
38.1 |
200 |
5 |
LPX-TPX-D38.1-F200 |
|
plano-convex |
38.1 |
500 |
4 |
LPX-TPX-D38.1-F500 |
|
plano-convex |
38.4 |
85 |
9 |
LPX-TPX-D38.4-F85 |
|
plano-convex |
50.8 |
75 |
14.19 |
LPX-TPX-D50.8-F75 |
|
plano-convex |
50.8 |
75 |
15 |
LPX-TPX-D50.8-F75 |
|
plano-convex |
50.8 |
100 |
10.62 |
LPX-TPX-D50.8-F100 |
|
plano-convex |
50.8 |
120 |
9.2 |
LPX-TPX-D50.8-F120 |
|
plano-convex |
50.8 |
150 |
7.84 |
LPX-TPX-D50.8-F150 |
|
plano-convex |
50.8 |
200 |
6.57 |
LPX-TPX-D50.8-F200 |
|
plano-convex |
50.8 |
200 |
7 |
LPX-TPX-D50.8-F200 |
|
plano-convex |
50.8 |
340 |
5 |
LPX-TPX-D50.8-F340 |
|
plano-convex |
50.8 |
500 |
5 |
LPX-TPX-D50.8-F500 |
|
plano-convex |
50.8 |
1000 |
5.7 |
LPX-TPX-D50.8-F1000 |
|
plano-convex |
50.8 |
960 |
5.4 |
LPX-TPX-D50.8-F960 |
|
plano-convex |
50.8 |
960 |
5.7 |
LPX-TPX-D50.8-F960 |
|
plano-convex |
50.8 |
1000 |
5.4 |
LPX-TPX-D50.8-F1000 |
|
plano-convex |
50.8 |
1000 |
5.7 |
LPX-TPX-D50.8-F1000 |
|
plano-convex |
50.8 |
1030 |
5.4 |
LPX-TPX-D50.8-F1030 |
|
plano-convex |
50.8 |
1200 |
5.4 |
LPX-TPX-D50.8-F1200 |
|
plano-convex |
50.8 |
2000 |
5.4 |
LPX-TPX-D50.8-F2000 |
|
plano-convex |
60 |
80 |
18.5 |
LPX-TPX-D60-F80 |
|
plano-convex |
60 |
180 |
8.6 |
LPX-TPX-D60-F180 |
|
plano-convex |
75 |
100 |
23 |
LPX-TPX-D75-F100 |
|
plano-convex |
76.2 |
150 |
14.5 |
LPX-TPX-D76.2-F150 |
|
plano-convex |
76.2 |
150 |
15 |
LPX-TPX-D76.2-F150 |
|
plano-convex |
76.2 |
250 |
12 |
LPX-TPX-D76.2-F250 |
|
plano-convex |
100 |
5000 |
10 |
LPX-TPX-D100-F5000 |
|
plano-convex |
101.6 |
200 |
25 |
LPX-TPX-D101.6-F200 |
|
plano-convex |
101.6 |
250 |
20 |
LPX-TPX-D101.6-F250 |
|
plano-concave |
50.8 |
2174 |
2.68 |
LPС-TPX-D50.8-T3 |
|
bi-convex |
12 |
12 |
5 |
LBX-TPX-D12-F12 |
|
bi-convex |
12 |
12 |
6 |
LBX-TPX-D12-F12 |
|
bi-convex |
25.4 |
25 |
10.53 |
LBX-TPX-D25.4-F25 |
|
bi-convex |
25.4 |
25 |
10.53 |
LBX-TPX-D25.4-F25 |
|
bi-convex |
25.4 |
50 |
7 |
LBX-TPX-D25.4-F50 |
|
bi-convex |
38.1 |
38.1 |
15.5 |
LBX-TPX-D38.1-F38.1 |
|
bi-convex |
50.8 |
50 |
18 |
LBX-TPX-D50.8-F50 |
|
bi-convex |
50.8 |
50 |
19.54 |
LBX-TPX-D50.8-F50 |
|
bi-convex |
50.8 |
75 |
13 |
LBX-TPX-D50.8-F75 |
|
bi-convex |
50.8 |
100 |
10.27 |
LBX-TPX-D50.8-F100 |
|
bi-convex |
50.8 |
250 |
6.8 |
LBX-TPX-D50.8-F250 |
|
bi-convex |
76.2 |
75 |
28 |
LBX-TPX-D76.2-F75 |
|
bi-convex |
76.2 |
100 |
20 |
LBX-TPX-D76.2-F100 |
|
bi-convex |
76.2 |
200 |
14 |
LBX-TPX-D76.2-F200 |
|
bi-convex |
76.45 |
100 |
19 |
LBX-TPX-D76.45-F100 |
|
bi-convex |
100 |
202.6 |
19.2 |
LBX-TPX-D100-F202.6 |
|
bi-convex |
101.6 |
123 |
27.2 |
LBX-TPX-D101.6-F123 |
|
bi-convex |
110 |
700 |
25 |
LBX-TPX-D110-F700 |
|
cylindrical hyper-hemisphere |
25х50 |
5.7 |
50 |
LCHS-TPX-L25-H50-F50 |
|
cylindrical hyper-hemisphere |
40х40 |
15.6 |
50 |
LCPХ-TPX-L40-H40-F50 |
|
cylindrical hyper-hemisphere |
50х50 |
15.7 |
75 |
LCPХ-TPX-L50-H50-F75 |
|
cylindrical plano-convex |
38.1х20 |
10.11 |
50 |
CYLLPХ-TPX-L38.1-H20-F50 |
Tydex透镜的其它型号
Tydex针对BaF2，BK7，IR-FS，UV-FS，UV-FS2，Ge，Si，ZnSe，CaF2，Sapphire，Crystal quartz，KBr， ZnS等材料也设计了一系列的标准透镜产品。
BaF2，BK7太赫兹透镜
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
plano-convex |
20 |
50 |
4.5 |
LPX-BAF2-D20-F50 |
|
plano-convex |
50.8 |
200 |
6.13 |
LPX-BAF2-D50.8-F200 |
|
hemisphere |
25 |
- |
12.5 |
LHS-BAF2-D25-T12.5 |
|
bi-convex |
22 |
58 |
3.7 |
LBX-BAF2-D22-F58 |
|
bi-convex |
50.8 |
50.8 |
22.08 |
LBX-BAF2-D50.8-F50.8 |
|
cylindrical |
19.8 x 22 |
33.24 |
6 |
LPX-CYL-BAF2-L19.8-H22-T6 |
|
plano-convex |
12.7 |
+700 |
|
LPX-BK7-D12.7-F700 |
|
plano-convex |
12.7 |
+800 |
|
LPX-BK7-D12.7-F800 |
|
plano-convex |
12.7 |
+2000 |
|
LPX-BK7-D12.7-F2000 |
|
plano-convex |
25.4 |
+50 |
|
LPX-BK7-D25.4-F50 |
|
plano-convex |
25.4 |
+75 |
|
LPX-BK7-D25.4-F75 |
IR-FS，UV-FS太赫兹透镜
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
plano-convex |
12 |
13 |
18.86 |
LPХ-IRFS-D12-T8.86 |
|
plano-convex |
38.1 |
190 |
6.16 |
LPX-UVFS-D38.1-F190-С |
|
plano-concave |
25.4 |
-435 |
6.35 |
LPC-IRFS-D25.4-T6.35 |
|
bi-convex |
24 |
63.47 |
3.63 |
LBX-UVFS-D24-F63.47-С |
|
plano-convex |
25.4 |
900 |
|
LPX-UVFS-D25.4-F900 |
|
plano-convex |
25.4 |
1000 |
|
LPX-UVFS-D25.4-F1000 |
|
plano-convex |
38.1 |
100 |
8 |
LPX-UVFS-D38.1-F100 |
|
plano-convex |
38.1 |
200 |
8 |
LPX-UVFS-D38.1-F200 |
|
plano-convex |
38.1 |
500 |
|
LPX-UVFS-D38.1-F500 |
|
plano-concave |
12.7 |
-50 |
|
LPC-UVFS-D12.7-F50 |
|
plano-concave |
12.7 |
-100 |
|
LPC-UVFS-D12.7-F100 |
硅透镜和锗透镜, Si材料THz透镜， Ge材料太赫兹透镜
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
sphere |
2 |
- |
- |
LHS-FZ-SI-D2 |
|
sphere |
4 |
- |
- |
LHS-FZ-SI-D4 |
|
sphere |
6 |
- |
- |
LHS-FZ-SI-D6 |
|
hyper-hemisphere |
8 |
- |
4.22 |
LHS-SI-D8-T4.22 |
|
hyper-hemisphere |
8 |
- |
5 |
LHS-SI-D8-T5-С |
|
hyper-hemisphere |
12.7 |
- |
8.35 |
LHS-SI-D12.7-T8.35 |
|
hypo-hemisphere |
1.64 |
- |
0.5 |
LHS-FZ-SI-D1.64-T0.5 |
|
plano-convex |
2 |
2 |
1.1 |
LPX-SI-D2-F2 |
|
plano-convex |
2 |
2 |
1.1 |
LPX-SI-D2-TF2-C |
|
plano-convex |
4 |
- |
1.8 |
LPX-SI-D4-T1.8 |
|
plano-convex |
8 |
2.7 |
1.5 |
LPX-SI-D8-F2.7 |
|
hyper-hemisphere |
4 |
- |
2.16 |
LHS-GE-D4-T2.16 |
|
hyper-hemisphere |
4 |
- |
2.16 |
LHS-GE-D4-T2.16-С |
|
hemisphere |
10 |
- |
5 |
LHS-GE-D10-T5-С |
|
hemisphere |
10 |
- |
5 |
LHS-GE-D10-T5 |
|
hemisphere |
10 |
- |
5 |
LHS-GE-D10-T5 |
|
hemisphere |
12 |
- |
6 |
LHS-GE-D12-T6-С |
|
hemisphere |
12.5 |
- |
6.25 |
LHS-GE-D12.5-T6.25-С |
|
hemisphere |
25 |
- |
12.5 |
LHS-GE-D25-T12.5 |
ZnSe，CaF2太赫兹透镜
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
hemisphere |
5 |
- |
2.5 |
LHS-ZNSE-D5-T2.5 |
|
hemisphere |
12 |
- |
6 |
LHS-ZNSE-D12-T6-С |
|
hemisphere |
12 |
- |
6 |
LHS-ZNSE-D12-T6 |
|
hemisphere |
25 |
- |
12.5 |
LHS-ZNSE-D25-T12.5 |
|
hemisphere |
25 |
- |
12.5 |
LHS-ZNSE-D25-T12.5 |
|
hemisphere |
27.4 |
- |
13.7 |
LHS-ZNSE-D27.4-T13.7 |
|
plano-convex |
8 |
25 |
2.23 |
LPX-ZNSE-D8-F25 |
|
plano-convex |
8 |
25 |
2.23 |
LPX-ZNSE-D8-F25-С |
|
plano-convex |
8 |
25 |
2.23 |
LPX-ZNSE-D8-F25-С |
|
plano-concave |
38.1 |
-238 |
2.1 |
LPC-CAF2-D38.1-F238 |
|
plano-concave |
38.1 |
-238 |
2.1 |
LPC-CAF2-D38.1-F238 |
|
bi-convex |
5 |
5 |
- |
LBX-CAF2-D5-F5 |
|
bi-convex |
11 |
- |
5.3 |
LBX-CAF2-D11-T5.3 |
|
bi-convex |
11 |
12.5 |
5.3 |
LBX-CAF2-D11-F12.5 |
|
bi-convex |
11 |
13.3 |
5.3 |
LBX-CAF2-D11-F13.3 |
|
bi-convex |
52 |
52 |
26 |
LBX-CAF2-D52-F52 |
|
bi-convex |
92 |
327.86 |
12 |
LBX-CAF2-D92-F327.86-C |
|
meniscus |
26 |
74.68 |
5 |
LNM-CAF2-D26-F74.68 |
|
meniscus |
40.5 |
-133.8 |
5.8 |
LNM-CAF2-D40.5-F133.8 |
Sapphire，Crystal quartz，KBr， ZnS太赫兹透镜
|
描述 |
直径尺寸mm |
有效焦距, mm |
厚度，mm |
型号 |
|
sphere |
5 |
|
|
LSH-SA-D5 |
|
sphere |
10 |
|
|
LSH-SA-D10 |
|
hyperhemisphere |
10 |
|
6.3 |
LHS-SA-D10-T6.3 |
|
plano-convex |
20 |
? |
? |
LPX-SA-D20 |
|
plano-convex |
38.1 |
80 |
5 |
LPX-SA-D38.1-Т5 |
|
bi-convex |
28 |
- |
- |
LBX-SA-D28-T1.5 |
|
dome |
50 |
- |
44 |
DOME-SA-D50-T4 |
|
sphere |
10 |
- |
- |
LSH-CQ-D10 |
|
hyperhemisphere |
10 |
- |
6 |
LHS-CQ-D10-T6 |
|
plano-convex |
25.4 |
50 |
4.47 |
LPX-CQ-D25.4-F50 |
|
plano-convex |
38.1 |
100 |
4.7 |
LPX-CQ-D38.1-F100 |
|
bi-convex |
6 |
6 |
3 |
LBX-CQ-D6-F6 |
|
bi-convex |
37 |
152.4 |
4.15 |
LВХ-KBR-D37-F152.4 |
|
hyper-hemisphere |
1,6 |
- |
1 |
LHS-ZnS-D1,55-T1-C |
|
bi-convex |
47 x 47 |
- |
4.11 |
LBX-ZnS-L47-H47-T4.11-C |
|
bi-convex |
47 x 47 |
- |
4.11 |
LBX-ZnS-L47-H47-T4.11 |
|
bi-convex |
47 x 47 |
- |
4.11 |
LBX-ZnS-L47-H47-T4.11-C |
|
bi-convex |
52 x 60 |
- |
6.164 |
LBС-ZnS-L52-H60-T6.164-C |
|
bi-concave |
47 x 47 |
- |
4.11 |
LBС-ZnS-L47-H47-T4.11 |
|
bi-concave |
47 x 47 |
- |
4.11 |
LBС-ZnS-L47-H47-T4.11-C |
太赫兹实验的第一步往往是搭建太赫兹光路，同样设计镜架、电动平台和各种太赫兹的光学元件。海纳光学提供搭建太赫兹光路所需的THz离轴抛物面镜、太赫兹窗口片、滤波片、偏振片、透镜、棱镜、波片、分束片、反射镜、物…
DWARF-Star近红外光纤光谱仪
电生理显微镜载物台，神经科学显微镜电动平台
高精度电控平移台（1μm）
医用防护眼镜
